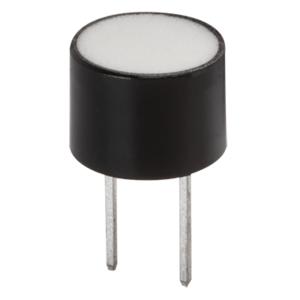

CUSP-TR12-010-1150-TH
9.9 mm, 50 Vp-p, 9° Directivity, 0.05 ~ 1 M Range, 300 kHz, Through Hole, Ultrasonic Transceiver Sensor
Specifications
| Type | Description | |
|---|---|---|
| Mounting Style | Through Hole |
|
| Function | Transceiver |
|
| Range (m) | 0.05 ~ 1 |
|
| Frequency (kHz) | 300 |
|
| Voltage Rating (Vp-p) | 50 |
|
| Directivity (°) | 9 |
|
| Case Type | Plastic |
|
| Enclosed | No |
|
| Technology | Analog |
|
| IP Rating | No IP Rating |
|
| Dimensions LxWxH (mm) | 9.9 x 9.9 x 7.3 |
|
| Dimensions LxWxH (in) | 0.39 x 0.39 x 0.29 |
|
