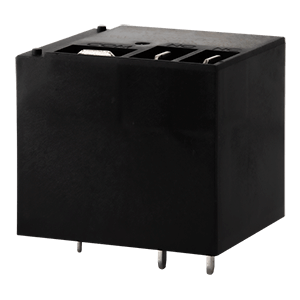

PRY5-18V-900-1C-EF
32 x 27.4 x 28 mm, 18 V, 30 A, SPDT (1 Form C), Class F, Epoxy Sealed, Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Coil Type | Non-Latching |
|
| Coil Voltage (V) | 18 |
|
| Nominal Coil Power (mW) | 900 |
|
| Contact Form | SPDT(1 Form C) |
|
| Contact Rating | 30 @ 250 VAC |
|
| Max Switching Voltage (VDC) | 30 |
|
| Max Switching Voltage (VAC) | 277 |
|
| Max Switching Current (A) | 40 |
|
| Contact Resistance (mΩ) | 100 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Contact Material | Ag Alloy |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Seal Rating | Fully |
|
| Coil Insulation Class | F |
|
| Dimensions LxWxH (mm) | 32 x 27.4 x 28 |
|
| Series | PRY5 |
|
| Relay Type | Power |
|
