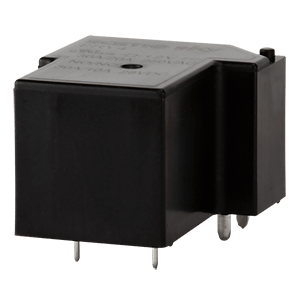

PRY4-5V-900-1A-EF
31.5 x 27.4 x 19.5 mm, 5 V, 40 A, SPST (1 Form A), Class F, Epoxy Sealed, Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Coil Type | Non-Latching |
|
| Coil Voltage (V) | 5 |
|
| Nominal Coil Power (mW) | 900 |
|
| Contact Form | SPST (1 Form A) |
|
| Contact Rating | 40 @ 250 VAC |
|
| Max Switching Voltage (VDC) | 30 |
|
| Max Switching Voltage (VAC) | 277 |
|
| Max Switching Current (A) | 40 |
|
| Contact Resistance (mΩ) | 100 |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | Ag Alloy |
|
| Seal Rating | Fully |
|
| Coil Insulation Class | F |
|
| Dimensions LxWxH (mm) | 31.5 x 27.4 x 19.5 |
|
| Series | PRY4 |
|
| Relay Type | Power |
|
