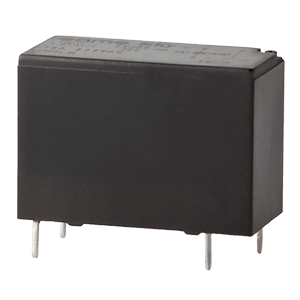

PRL6-12V-DC-1A
20.2 x 10 x 14 mm, 12 V, 16 A, SPST (1 Form A), Double Coil, Latching Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Relay Type | Power |
|
| Coil Type | Latching, Double Coil |
|
| Coil Voltage (V) | 12 |
|
| Nominal Coil Power (mW) | 500 |
|
| Contact Form | SPST (1 Form A) |
|
| Contact Rating | 16 A @ 277 VAC |
|
| Contact Resistance (mΩ) | 100 |
|
| Max Switching Voltage (VAC) | 277 |
|
| Max Switching Voltage (VDC) | 24 |
|
| Max Switching Current (A) | 20 |
|
| Seal Rating | Flux |
|
| Coil Insulation Class | B |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | Ag Alloy |
|
| Dimensions LxWxH (mm) | 20.2 x 10 x 14 |
|
| Series | PRL6 |
|
