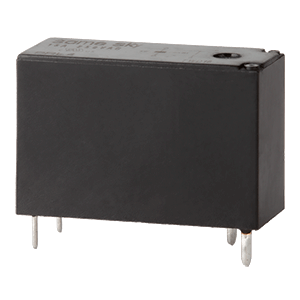

PRL4-3V-SC-1A
24 x 15.8 x 10 mm, 3 V, 16 A, SPST (1 Form A), Single Coil, Latching Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Relay Type | Power |
|
| Coil Type | Latching, Single Coil |
|
| Coil Voltage (V) | 3 |
|
| Nominal Coil Power (mW) | 200 |
|
| Contact Form | SPST (1 Form A) |
|
| Contact Rating | 16 A @ 277 VAC |
|
| Contact Resistance (mΩ) | 100 |
|
| Max Switching Voltage (VAC) | 277 |
|
| Max Switching Voltage (VDC) | 24 |
|
| Max Switching Current (A) | 20 |
|
| Seal Rating | Flux |
|
| Coil Insulation Class | B |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | Ag Alloy |
|
| Dimensions LxWxH (mm) | 24 x 15.8 x 10 |
|
| Series | PRL4 |
|
