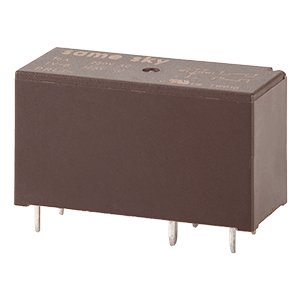

PRL1-9V-DC-2A
29 x 12.7 x 16 mm, 9 V, 16 A, DPST (2 Form A), Class B, Double Coil, Latching Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Relay Type | Power |
|
| Coil Type | Latching, Double Coil |
|
| Coil Voltage (V) | 9 |
|
| Nominal Coil Power (mW) | 1200 |
|
| Contact Form | DPST (2 Form A) |
|
| Contact Rating | 16 A @ 250 VAC |
|
| Contact Resistance (mΩ) | 100 |
|
| Max Switching Voltage (VAC) | 277 |
|
| Max Switching Voltage (VDC) | 24 |
|
| Max Switching Current (A) | 20 |
|
| Seal Rating | Flux |
|
| Coil Insulation Class | B |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | Ag Alloy |
|
| Dimensions LxWxH (mm) | 29 x 12.7 x 16 |
|
| Series | PRL1 |
|
