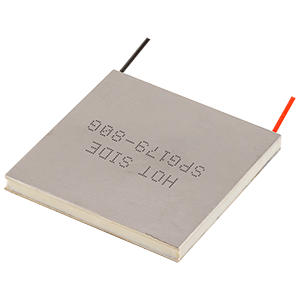

SPG179-80G
80 x 80 x 5.254 mm, 27.3 W Output, Wire Leads, Graphite Pad, Thermoelectric Generator (TEG)
The SPG179-80G is a thermoelectric generator (TEG) module outputting 27.3 W of power in a 80 x 80 x 5.254 mm package. This TEG module is silicone sealed, features a graphite pad, and supports continuous maximum hot side temperatures up to 300°C.
Features
| Up to 300 °C continuous maximum hot side temp |
| Silicone sealed |
| Graphite Pad |
Specifications
| Type | Description | |
|---|---|---|
| Open Circuit Voltage (Vdc) | 9.6 |
|
| Matched Load Resistance (Ohms) | 0.83 |
|
| Matched Load Output Voltage (V) | 4.8 |
|
| Matched Load Output Current (A) | 5.7 |
|
| Matched Load Output Power (W) | 27.3 |
|
| Heat Flow Across Module (W) | 525 |
|
| Heat Flow Density (W/cm²) | 8.2 |
|
| AC Resistance (@27 °C /1000 Hz) (ohms) | 0.25~0.45 |
|
| Dimensions LxWxH (mm) | 80 x 80 x 5.254 |
|
