SPG178-56G

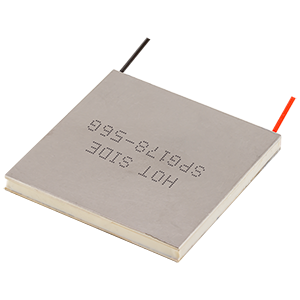

56 x 56 x 5.054 mm, 17.8 W Output, Wire Leads, Graphite Pad, Thermoelectric Generator (TEG)
The SPG178-56G is a thermoelectric generator (TEG) module outputting 17.8 W of power in a 56 x 56 x 5.054 mm package. This TEG module is silicone sealed, features a graphite pad, and supports continuous maximum hot side temperatures up to 300°C.
Features
| Up to 300 °C continuous maximum hot side temp |
| Silicone sealed |
| Graphite Pad |
Specifications
| Type | Description | |
|---|---|---|
| Open Circuit Voltage (Vdc) | 9.4 |
|
| Matched Load Resistance (Ohms) | 1.25 |
|
| Matched Load Output Voltage (V) | 4.7 |
|
| Matched Load Output Current (A) | 3.8 |
|
| Matched Load Output Power (W) | 17.8 |
|
| Heat Flow Across Module (W) | 342 |
|
| Heat Flow Density (W/cm²) | 10.9 |
|
| AC Resistance (@27 °C /1000 Hz) (ohms) | 0.4~0.75 |
|
| Dimensions LxWxH (mm) | 56 x 56 x 5.054 |
|
