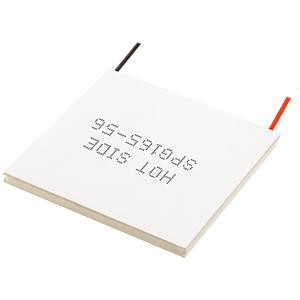

SPG165-56
56 x 56 x 5.3 mm, 16.5 W Output, Wire Leads, Thermoelectric Generator (TEG)
The SPG165-56 is a thermoelectric generator (TEG) module outputting 16.5 W of power in a 56 x 56 x 5.3 mm package. This TEG module is silicone sealed and supports continuous maximum hot side temperatures up to 300°C.
Features
| Up to 300 °C continuous maximum hot side temp |
| Silicone sealed |
Specifications
| Type | Description | |
|---|---|---|
| Open Circuit Voltage (Vdc) | 8.6 |
|
| Matched Load Resistance (Ohms) | 1.12 |
|
| Matched Load Output Voltage (V) | 4.3 |
|
| Matched Load Output Current (A) | 3.84 |
|
| Matched Load Output Power (W) | 16.5 |
|
| Heat Flow Across Module (W) | 246 |
|
| Heat Flow Density (W/cm²) | 7.8 |
|
| AC Resistance (@27 °C /1000 Hz) (ohms) | 0.45~0.65 |
|
| Dimensions LxWxH (mm) | 56 x 56 x 5.3 |
|
