CP60131H

CP60131H

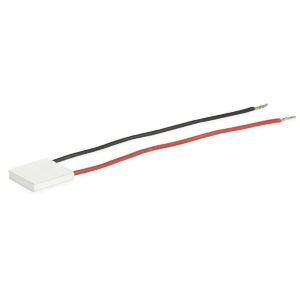

15 x 15 x 3.1 mm, 6.0 A Input with Leads, High Performance Peltier (TEC) Module

The CP60H series is a family of 6.0 A high performance Peltier modules featuring a low profile and high temperature delta up to 77°C. These thermoelectric modules are ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option. Larger models integrate Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.

Datasheet

Features

Low profile
Precise temperature control
Solid state construction
Wide ΔTmax
Enhanced reliability for high thermal cycling
Superior thermal performance
Silicon sealed
arcTEC™ structure on select models

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 0.45
Imax (A) 6
Vmax (V) 3.8
Qmax (Th=27°C) (W) 13
ΔTmax (Th=27°C) 70
Qmax (Th=50°C) (W) 14.3
ΔTmax (Th=50°C) 77
Dimensions LxWxH (mm) 15 x 15 x 3.1
Series CP60H

Technical Docs

Datasheet 3D Model
