CP30138

CP30138

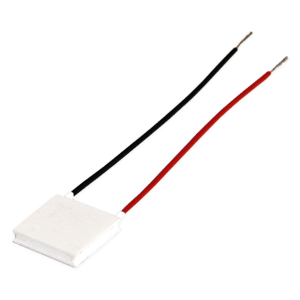

15x15x3.8 mm, 3.0 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1
Imax (A) 3
Vmax (V) 3.8
Qmax (Th=27°C) (W) 6.5
ΔTmax (Th=27°C) 66
Qmax (Th=50°C) (W) 7.2
ΔTmax (Th=50°C) 72
Dimensions LxWxH (mm) 15 x 15 x 3.8
Series CP30

Technical Docs

Datasheet 3D Model
