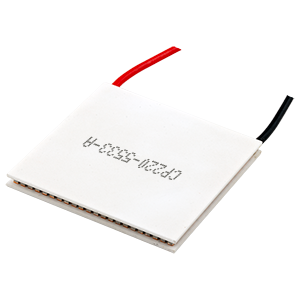

CP220-5533-A
55 x 55 x 3.35 mm, 22 A Input with Leads, Unsealed, arcTEC™, Peltier (TEC) Module
Specifications
| Type | Description | |
|---|---|---|
| Imax (A) | 22 |
|
| Vmax (V) | 16.8 |
|
| Qmax (Th=27°C) (W) | 234.9 |
|
| Qmax (Th=50°C) (W) | 256.5 |
|
| ΔTmax (Th=27°C) | 74 |
|
| ΔTmax (Th=50°C) | 83 |
|
| Resistance (Th=27°C) (Ohms ± 10%) | 0.58 |
|
| Resistance (Th=50°C) (Ohms ± 10%) | 0.62 |
|
| Sealed | No |
|
| Cold Side Temp (°C) | -60 |
|
| Hot Side Temp (°C) | 195 |
|
| Dimensions LxWxH (mm) | 55 x 55 x 3.35 |
|
