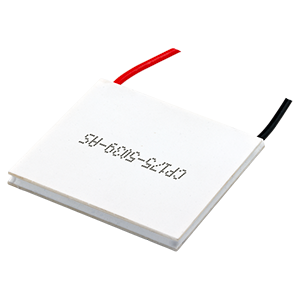

CP175-5039-AS
50 x 50 x 3.9 mm, 17.5 A Input with Leads, Sealed, arcTEC™, Peltier (TEC) Module
The CP175-5039-AS is a 17.5 A high-performance, single-stage Peltier module featuring a high temperature delta of 83°C. The model also integrates Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.
Specifications
| Type | Description | |
|---|---|---|
| Imax (A) | 17.5 |
|
| Vmax (V) | 33.9 |
|
| Qmax (Th=27°C) (W) | 385.5 |
|
| Qmax (Th=50°C) (W) | 415.1 |
|
| ΔTmax (Th=27°C) | 74 |
|
| ΔTmax (Th=50°C) | 83 |
|
| Resistance (Th=27°C) (Ohms ± 10%) | 1.45 |
|
| Resistance (Th=50°C) (Ohms ± 10%) | 1.56 |
|
| Sealed | Yes |
|
| Cold Side Temp (°C) | -60 |
|
| Hot Side Temp (°C) | 195 |
|
| Dimensions LxWxH (mm) | 50 x 50 x 3.9 |
|
