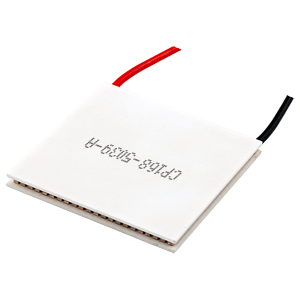

CP168-5039-A
50 x 50 x 3.95 mm, 16.8 A Input with Leads, Unsealed, arcTEC™, Peltier (TEC) Module
The CP168-5039-A is a 16.8 A high-performance, single-stage Peltier module featuring a high temperature delta of 83°C. The model also integrates Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.
Specifications
| Type | Description | |
|---|---|---|
| Imax (A) | 16.8 |
|
| Vmax (V) | 16.8 |
|
| Qmax (Th=27°C) (W) | 176 |
|
| Qmax (Th=50°C) (W) | 195.9 |
|
| ΔTmax (Th=27°C) | 74 |
|
| ΔTmax (Th=50°C) | 83 |
|
| Resistance (Th=27°C) (Ohms ± 10%) | 0.82 |
|
| Resistance (Th=50°C) (Ohms ± 10%) | 0.91 |
|
| Sealed | No |
|
| Cold Side Temp (°C) | -60 |
|
| Hot Side Temp (°C) | 195 |
|
| Dimensions LxWxH (mm) | 50 x 50 x 3.95 |
|
