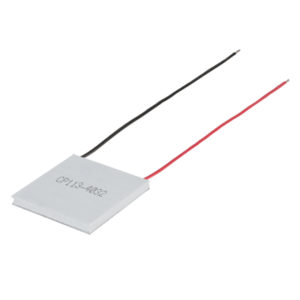

CP113-4032
CP113-4032
CP113-4032 Alternate View

CP113-4032

40 x 40 x 3.2 mm, 11.3 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 11.3
Vmax (V) 26.6
Qmax (Th=27°C) (W) 177.3
Qmax (Th=50°C) (W) 191.7
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 1.7
Resistance (Th=50°C) (Ohms ± 10%) 1.88
Dimensions LxWxH (mm) 40 x 40 x 3.2

Technical Docs

Datasheet
