CP105433H

CP105433H

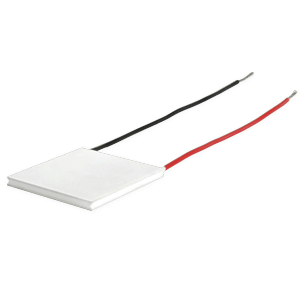

40 x 40 x 3.3 mm, 10.5 A Input with Leads, Peltier (TEC) Module

The CP105H series is a family of 10.5 A high performance Peltier modules featuring high temperature deltas of 75°C. These thermoelectric modules are ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option. The models also integrate Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.

Datasheet

Features

arcTEC™ structure
Enhanced reliability for high thermal cycling
Superior thermal performance
Silicone sealed
Wide ΔTmax
Precise temperature control
Solid state construction

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.15
Imax (A) 10.5
Vmax (V) 15.4
Qmax (Th=27°C) (W) 93
ΔTmax (Th=27°C) 68
Qmax (Th=50°C) (W) 102
ΔTmax (Th=50°C) 75
Dimensions LxWxH (mm) 40 x 40 x 3.3
Series CP105H

Technical Docs

Datasheet 3D Model
