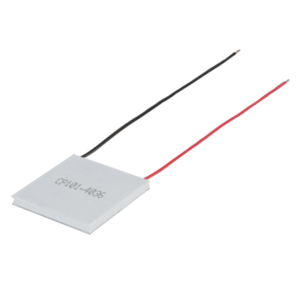

CP101-4036
CP101-4036
CP101-4036 Alternate View

CP101-4036

40 x 40 x 3.6 mm, 10.1 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 10.1
Vmax (V) 17.2
Qmax (Th=27°C) (W) 101.1
Qmax (Th=50°C) (W) 110.5
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 1.25
Resistance (Th=50°C) (Ohms ± 10%) 1.38
Dimensions LxWxH (mm) 40 x 40 x 3.6

Technical Docs

Datasheet
