CP085-4036
CP085-4036
CP085-4036 Alternate View

CP085-4036

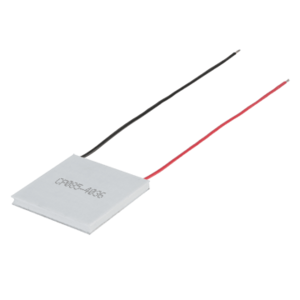

40 x 40 x 3.6 mm, 8.5 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 8.5
Vmax (V) 26.9
Qmax (Th=27°C) (W) 133.4
Qmax (Th=50°C) (W) 145.8
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 2.25
Resistance (Th=50°C) (Ohms ± 10%) 2.49
Dimensions LxWxH (mm) 40 x 40 x 3.6

Technical Docs

Datasheet
