CP084-1535
CP084-1535
CP084-1535 Alternate View

CP084-1535

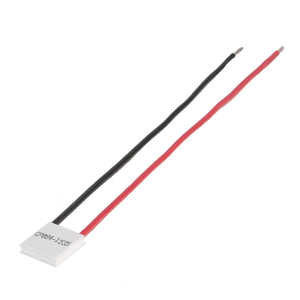

15 x 15 x 3.5 mm, 8.4 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 8.4
Vmax (V) 2.3
Qmax (Th=27°C) (W) 11.5
Qmax (Th=50°C) (W) 12.6
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.2
Resistance (Th=50°C) (Ohms ± 10%) 0.21
Dimensions LxWxH (mm) 15 x 15 x 3.5

Technical Docs

Datasheet
