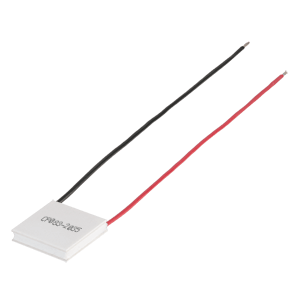

CP083-2035
CP083-2035
CP083-2035 Alternate View

CP083-2035

20 x 20 x 3.5 mm, 8.3 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 8.3
Vmax (V) 4.3
Qmax (Th=27°C) (W) 20.7
Qmax (Th=50°C) (W) 22.6
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.36
Resistance (Th=50°C) (Ohms ± 10%) 0.39
Dimensions LxWxH (mm) 20 x 20 x 3.5

Technical Docs

Datasheet
