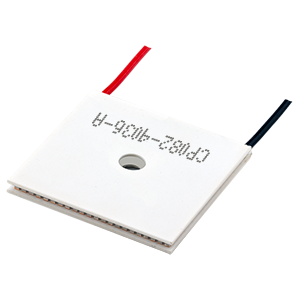

CP082-4036-A
40 x 40 x 3.6 mm, 8.2 A Input with Leads, Unsealed, arcTEC™, Annular Cutout, Peltier (TEC) Module
Specifications
| Type | Description | |
|---|---|---|
| Imax (A) | 8.2 |
|
| Vmax (V) | 15 |
|
| Qmax (Th=27°C) (W) | 76.9 |
|
| Qmax (Th=50°C) (W) | 84.1 |
|
| ΔTmax (Th=27°C) | 70 |
|
| ΔTmax (Th=50°C) | 79 |
|
| Resistance (Th=27°C) (Ohms ± 10%) | 1.4 |
|
| Resistance (Th=50°C) (Ohms ± 10%) | 1.5 |
|
| Sealed | No |
|
| Cold Side Temp (°C) | -60 |
|
| Hot Side Temp (°C) | 195 |
|
| Dimensions LxWxH (mm) | 40 x 40 x 3.6 |
|
