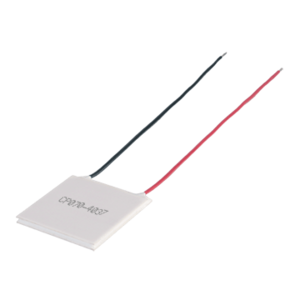

CP070-4037
CP070-4037
CP070-4037 Alternate View

CP070-4037

40 x 40 x 3.7 mm, 7 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 7
Vmax (V) 17.2
Qmax (Th=27°C) (W) 70.1
Qmax (Th=50°C) (W) 76.6
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 1.8
Resistance (Th=50°C) (Ohms ± 10%) 1.95
Dimensions LxWxH (mm) 40 x 40 x 3.8

Technical Docs

Datasheet
