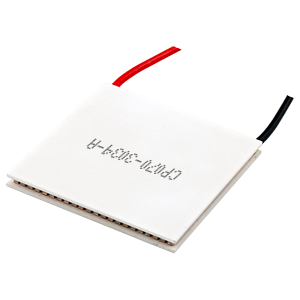

CP070-3034-A
30 x 30 x 3.45 mm, 7 A Input with Leads, Unsealed, arcTEC™, Peltier (TEC) Module
The CP070-3034-A is a 7 A high-performance, single-stage Peltier module featuring a high temperature delta of 79°C. The model also integrates Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.
Specifications
| Type | Description | |
|---|---|---|
| Imax (A) | 7 |
|
| Vmax (V) | 25.6 |
|
| Qmax (Th=27°C) (W) | 112.2 |
|
| Qmax (Th=50°C) (W) | 122.9 |
|
| ΔTmax (Th=27°C) | 70 |
|
| ΔTmax (Th=50°C) | 79 |
|
| Resistance (Th=27°C) (Ohms ± 10%) | 2.8 |
|
| Resistance (Th=50°C) (Ohms ± 10%) | 3 |
|
| Sealed | No |
|
| Cold Side Temp (°C) | -60 |
|
| Hot Side Temp (°C) | 195 |
|
| Dimensions LxWxH (mm) | 30 x 30 x 3.45 |
|
