CP062-1538
CP062-1538
CP062-1538 Alternate View

CP062-1538

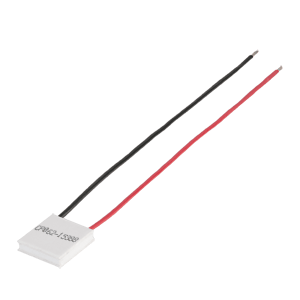

15 x 15 x 3.8 mm, 6.2 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 6.2
Vmax (V) 2.31
Qmax (Th=27°C) (W) 8.27
Qmax (Th=50°C) (W) 8.98
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.26
Resistance (Th=50°C) (Ohms ± 10%) 0.29
Dimensions LxWxH (mm) 15 x 15 x 3.8

Technical Docs

Datasheet
