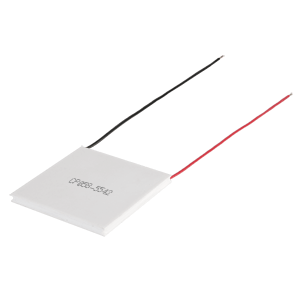

CP058-5542
CP058-5542
CP058-5542 Alternate View

CP058-5542

55 x 55 x 4.2 mm, 5.8 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 5.8
Vmax (V) 33.1
Qmax (Th=27°C) (W) 109.6
Qmax (Th=50°C) (W) 118.1
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 4.05
Resistance (Th=50°C) (Ohms ± 10%) 4.36
Dimensions LxWxH (mm) 55 x 55 x 4.2

Technical Docs

Datasheet
