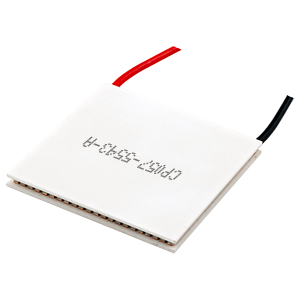

CP057-5543-A
55 x 55 x 4.35 mm, 5.7 A Input with Leads, Unsealed, arcTEC™, Peltier (TEC) Module
Specifications
| Type | Description | |
|---|---|---|
| Imax (A) | 5.7 |
|
| Vmax (V) | 30.9 |
|
| Qmax (Th=27°C) (W) | 115.5 |
|
| Qmax (Th=50°C) (W) | 124.4 |
|
| ΔTmax (Th=27°C) | 74 |
|
| ΔTmax (Th=50°C) | 83 |
|
| Resistance (Th=27°C) (Ohms ± 10%) | 4.2 |
|
| Resistance (Th=50°C) (Ohms ± 10%) | 4.5 |
|
| Sealed | No |
|
| Cold Side Temp (°C) | -60 |
|
| Hot Side Temp (°C) | 195 |
|
| Dimensions LxWxH (mm) | 55 x 55 x 4.35 |
|
