CP055-301537
CP055-301537
CP055-301537 Alternate View

CP055-301537

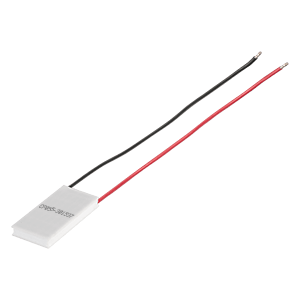

30 x 15 x 3.7 mm, 5.5 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 5.5
Vmax (V) 4.69
Qmax (Th=27°C) (W) 15.4
Qmax (Th=50°C) (W) 16.6
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.6
Resistance (Th=50°C) (Ohms ± 10%) 0.65
Dimensions LxWxH (mm) 30 x 15 x 3.7

Technical Docs

Datasheet
