CP047-3042
CP047-3042
CP047-3042 Alternate View

CP047-3042

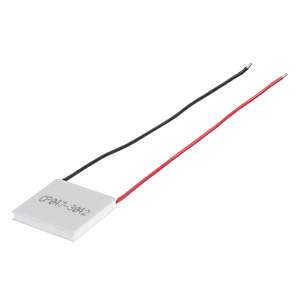

30 x 30 x 4.2 mm, 4.7 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 4.7
Vmax (V) 9.6
Qmax (Th=27°C) (W) 26.3
Qmax (Th=50°C) (W) 28.7
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 1.45
Resistance (Th=50°C) (Ohms ± 10%) 1.56
Dimensions LxWxH (mm) 30 x 30 x 4.2

Technical Docs

Datasheet
