CP043-301532
CP043-301532
CP043-301532 Alternate View

CP043-301532

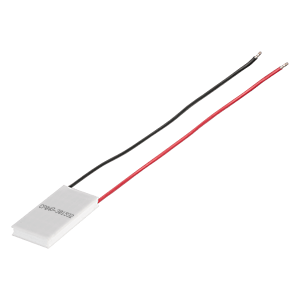

15 x 15 x 3.2 mm, 4.3 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 4.3
Vmax (V) 8.7
Qmax (Th=27°C) (W) 21.2
Qmax (Th=50°C) (W) 22.9
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 1.4
Resistance (Th=50°C) (Ohms ± 10%) 1.5
Dimensions LxWxH (mm) 15 x 15 x 0.13

Technical Docs

Datasheet

Buy from Same Sky
