CP040-4042
CP040-4042
CP040-4042 Alternate View

CP040-4042

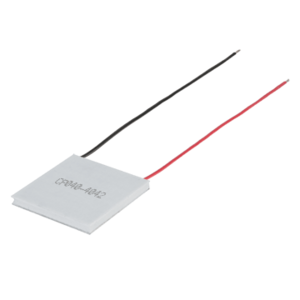

40 x 40 x 4.2 mm, 4 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 4
Vmax (V) 17.2
Qmax (Th=27°C) (W) 39.8
Qmax (Th=50°C) (W) 43.8
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 3
Resistance (Th=50°C) (Ohms ± 10%) 3.35
Dimensions LxWxH (mm) 40 x 40 x 4.2

Technical Docs

Datasheet
