CP040-301547
CP040-301547
CP040-301547 Alternate View

CP040-301547

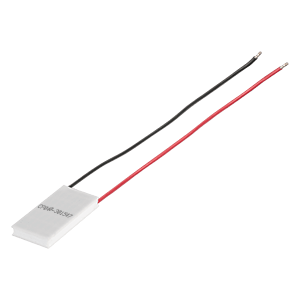

30 x 15 x 4.7 mm, 4 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 4
Vmax (V) 4.67
Qmax (Th=27°C) (W) 11.2
Qmax (Th=50°C) (W) 12.1
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.85
Resistance (Th=50°C) (Ohms ± 10%) 0.91
Dimensions LxWxH (mm) 30 x 15 x 4.7

Technical Docs

Datasheet
