CP038-3042
CP038-3042
CP038-3042 Alternate View

CP038-3042

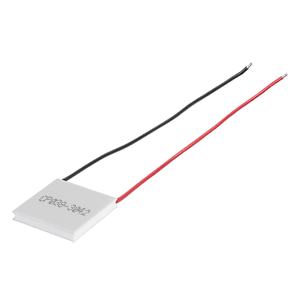

30 x 30 x 4.2 mm, 3.8 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 3.8
Vmax (V) 9.6
Qmax (Th=27°C) (W) 21.3
Qmax (Th=50°C) (W) 23.2
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 1.79
Resistance (Th=50°C) (Ohms ± 10%) 1.92
Dimensions LxWxH (mm) 30 x 30 x 4.2

Technical Docs

Datasheet
