CP038-2042
CP038-2042
CP038-2042 Alternate View

CP038-2042

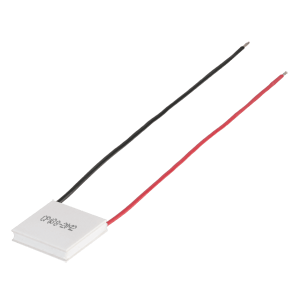

20 x 20 x 4.2 mm, 3.8 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 3.8
Vmax (V) 4.38
Qmax (Th=27°C) (W) 9.3
Qmax (Th=50°C) (W) 10.5
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.78
Resistance (Th=50°C) (Ohms ± 10%) 0.84
Dimensions LxWxH (mm) 20 x 20 x 4.2

Technical Docs

Datasheet
