CP036-313433
CP036-313433
CP036-313433 Alternate View

CP036-313433

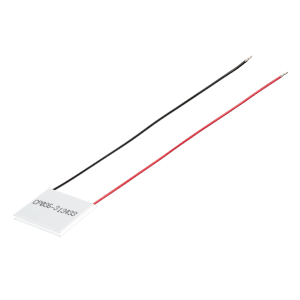

34 x 31 x 3.3 mm, 3.6 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 3.6
Vmax (V) 16.9
Qmax (Th=27°C) (W) 36.8
Qmax (Th=50°C) (W) 39.6
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 3.3
Resistance (Th=50°C) (Ohms ± 10%) 3.55
Dimensions LxWxH (mm) 34 x 31 x 3.3

Technical Docs

Datasheet
