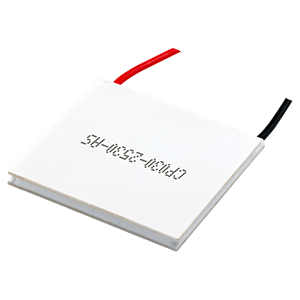

CP030-2530-AS
25 x 25 x 3.0 mm, 3 A Input with Leads, Sealed, arcTEC™, Peltier (TEC) Module
The CP030-2530-AS is a 3 A high-performance, single-stage Peltier module featuring a high temperature delta of 81°C. The model also integrates Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.
Specifications
| Type | Description | |
|---|---|---|
| Imax (A) | 3 |
|
| Vmax (V) | 16.4 |
|
| Qmax (Th=27°C) (W) | 30.6 |
|
| Qmax (Th=50°C) (W) | 33.9 |
|
| ΔTmax (Th=27°C) | 72 |
|
| ΔTmax (Th=50°C) | 81 |
|
| Resistance (Th=27°C) (Ohms ± 10%) | 4.1 |
|
| Resistance (Th=50°C) (Ohms ± 10%) | 4.4 |
|
| Sealed | Yes |
|
| Cold Side Temp (°C) | -60 |
|
| Hot Side Temp (°C) | 195 |
|
| Dimensions LxWxH (mm) | 25 x 25 x 3 |
|
