CP017-10395
CP017-10395
CP017-10395 Alternate View

CP017-10395

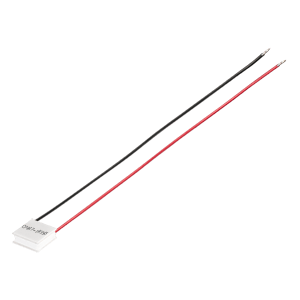

10 x 10 x 3.95 mm, 1.7 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 1.7
Vmax (V) 2.42
Qmax (Th=27°C) (W) 2.41
Qmax (Th=50°C) (W) 2.64
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 1
Resistance (Th=50°C) (Ohms ± 10%) 1.07
Dimensions LxWxH (mm) 10 x 10 x 3.95

Technical Docs

Datasheet
