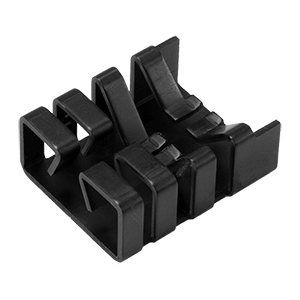

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | No Pin |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 15.5 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 19.1 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 7.7 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 5.8 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 4.84 |
|
| Material | AL5052 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 31 x 25.25 x 12.9 |
|
| Dimensions LxWxH (in) | 1.22 x 0.99 x 0.51 |
|
