HSS-B20-0635H

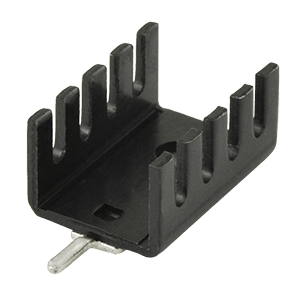

Stamped Heat Sink, TO-220, 6.35 mm Horizontal Solder Pin

Datasheet

Specifications

Rth = Thermal Resistance, PD = Power Dissipation

Type Description
Select
Package Cooled TO-220
Mounting Style PCB
Solder Pin Orientation Horizontal
Solder Pin Length (mm) 6.35
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 28.85
Thermal Resistance @ 1 W, nat conv (°C/W) 35.46
Thermal Resistance @ 1 W, 200 LFM (°C/W) 10.68
Thermal Resistance @ 1 W, 400 LFM (°C/W) 7.88
Power Dissipation @ 75°C ΔT, nat conv (W) 2.6
Material AL1050
Material Finish Black Anodized
Dimensions LxWxH (mm) 19.05 x 13.21 x 6.35
Dimensions LxWxH (in) 0.75 x 0.52 x 0.25
Series HSS-B20-0635
