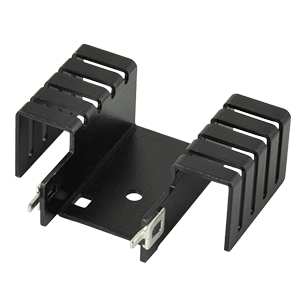

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | Horizontal |
|
| Solder Pin Length (mm) | 5 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 7.65 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 9.28 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 2.01 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 1.71 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 9.8 |
|
| Material | AL1050 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 41 x 51 x 18.5 |
|
| Dimensions LxWxH (in) | 1.61 x 2.01 x 0.73 |
|
