HSE-B18635-035H

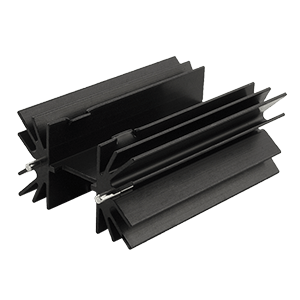

HSE-B18X-035H Series Group Image

HSE-B18635-035H

Extruded Heat Sink, TO-218, 3.5 mm Vertical Solder Pin

Datasheet

Specifications

Rth = Thermal Resistance, PD = Power Dissipation

Type Description
Select
Package Cooled TO-218
Mounting Style PCB
Solder Pin Length (mm) 3.5
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 4.49
Thermal Resistance @ 1 W, nat conv (°C/W) 6.61
Thermal Resistance @ 1 W, 200 LFM (°C/W) 2.24
Thermal Resistance @ 1 W, 400 LFM (°C/W) 1.22
Power Dissipation @ 75°C ΔT, nat conv (W) 16.7
Material AL6063-T5
Material Finish Black Anodized
Dimensions LxWxH (mm) 63.5 x 41.6 x 25
Dimensions LxWxH (in) 2.5 x 1.64 x 0.98
Series HSE-B18X-035H

Technical Docs

Datasheet 3D Model
