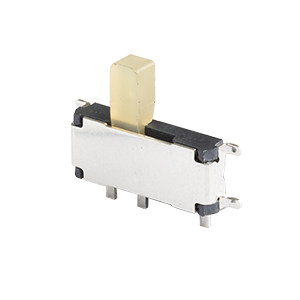

SLW-682715-25A-SMT-TR
6.6 x 2.75 x 1.5 mm, 2.5 mm Raised Slide Actuator, Surface Mount, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Actuator Height (mm) | 2.5 |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | SPDT |
|
| Switch Function | On-Off |
|
| Contact Timing | Non-shorting |
|
| Pitch (mm) | 2.5 |
|
| Rated Voltage (Vdc) | 6 |
|
| Current Rating (mA) | 300 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Orientation | Horizontal |
|
| Dimensions LxWxH (mm) | 6.6 x 2.75 x 1.5 |
|
| Dimensions LxWxH (in) | 0.259 x 0.108 x 0.059 |
|
