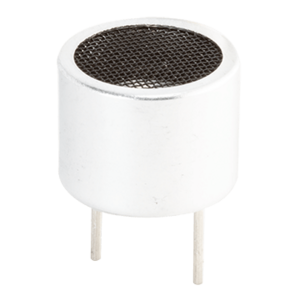

CUSA-R80-130-3000-TH
CUSA-R80-130-3000-TH
CUSA-R80-130-3000-TH Alternate View

CUSA-R80-130-3000-TH

16 mm, 200 Vp-p, 80° Directivity, 0~13 M Range, 29 kHz, Through Hole, Ultrasonic Receiver Sensor

Datasheet

Specifications

Type Description
Select
Dimensions LxWxH (mm) 16 x 16 x 12
Mounting Style Through Hole
Function Receiver
Range (m) 0 ~ 13
Frequency (kHz) 29
Rated Voltage (Vp-p) 200
Directivity (°) 80
Case Type Aluminum
Dimensions LxWxH (in) 0.63 x 0.63 x 0.47
Enclosed No
Technology Analog

Technical Docs

Datasheet
