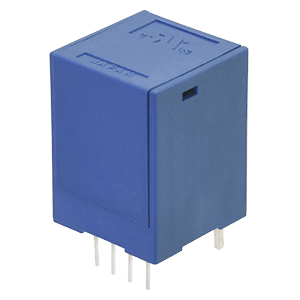

CS0505U
15 mm, 5 Vcc, Bipolar, Through Hole, 5 Rated Current, 0~10 Linearity Range, Open Loop Current Sensor
Specifications
| Type | Description | |
|---|---|---|
| Current Rating (A) | 5 |
|
| Linearity Range (A) | 0~10 |
|
| Polarization | Unipolar |
|
| Accuracy | ±4.2% |
|
| Supply Voltage (V) | 5 |
|
| Output Voltage @ +Rated Current (V) | 2.3 |
|
| Current Supply Max (mA) | 25 |
|
| Frequency (kHz) | 0~40 |
|
| Response Time (µs) | 7 |
|
| Number of Channels | Single |
|
| Dimensions LxWxH (in) | 0.59 x 0.59 x 0.79 |
|
| Mounting Style | Through Hole |
|
| Dimensions LxWxH (mm) | 15 x 15 x 20 |
|
| Series | CSXX05U |
|
