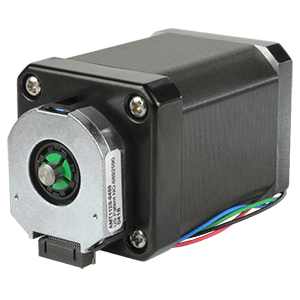

NEMA17-19-07PD-AMT112S
1.89 in Length, 83 oz-in Holding Torque, 1.05 A Current/Phase
Combining a compact NEMA 17 stepper motor with Same Sky’s AMT11 incremental encoder, the NEMA17-AMT112S series is a highly reliable motor and motion control feedback solution in one convenient package. The series features more holding torque than standard NEMA 17 motors up to 110 oz-in (0.77 N-m) and is custom wound for high speed or low speed applications. Offering incremental resolutions up to 4096 PPR and a digitally set zero position, the encoder is fully programmable via Same Sky’s AMT Viewpoint™ software without having to remove the encoder from the motor and in combination with the motor, it provides closed-loop feedback when paired with a controller for a complete servo system.
Specifications
| Type | Description | |
|---|---|---|
| Frame Size | NEMA 17 |
|
| Max Holding Torque (oz-in) | 83 |
|
| Shaft Ø (mm) | 5 |
|
| Current/Phase (A) | 2.1 |
|
| Resistance/Phase (Ω±10%) | 5.2 |
|
| Step Angle (°) | 1.8 |
|
| Inductance/Phase (mH±20%) | 2.34 |
|
| Operating Temp Range (°C) | -20 ~ 50 |
|
| Max Optimal Speed (RPS) | 9 |
|
| Length (in) | 1.89 |
|
| Voltage Rating (Vdc) | 24 ~ 48 |
|
| Series | NEMA17-AMT112S |
|
