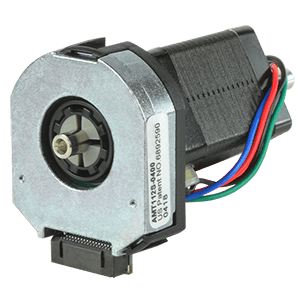

NEMA08-13-01D-AMT112S

1.3 in Length, 3 oz-in Holding Torque, 0.6 A Current/Phase

Combining a compact NEMA 08 stepper motor with Same Sky’s AMT11 incremental encoder, the NEMA08-AMT112S series is a highly reliable motor and motion control feedback solution in one convenient package. The series features up to 4 oz-in (0.028 N-m) of holding torque, incremental resolutions up to 4096 PPR, and a digitally set zero position. The encoder is fully programmable via Same Sky’s AMT Viewpoint™ software without having to remove the encoder from the motor and in combination with the motor, it provides closed-loop feedback when paired with a controller for a complete servo system.

Datasheet

Specifications

Type Description
Select
Frame Size NEMA 08
Max Holding Torque (oz-in) 3
Shaft Ø (mm) 4
Current/Phase (A) 0.6
Operating Temp Range (°C) -20 ~ 50
Resistance/Phase (Ω±10%) 6.5
Inductance/Phase (mH±20%) 1.7
Max Optimal Speed (RPS) 1
Length (in) 1.3
Series NEMA08-AMT112S
Rated Voltage (Vdc) 24 ~ 48
Step Angle (°) 1.8
