C14N32N-E1

C14N32N-E1

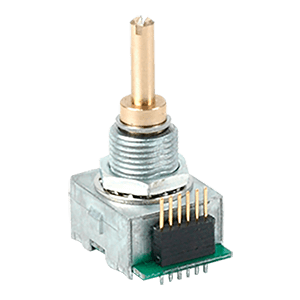

14 mm, 5 Vdc, 32 PPR, PCB Pins, Optical Panel Mount Encoder

Datasheet

Specifications

Type Description
Select
Base Size (mm) 14 x 16
Resolution (PPR) 32
Input Voltage (Vdc) 4.75 ~ 5.25
Shaft Length (mm) 22.22
Shaft (Bore) Ø (mm) 3.175
Detent No
Orientation Horizontal
Termination PCB Pins
Push Switch No
IP Rating No IP Rating
Series C14
