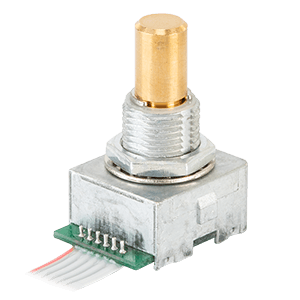

C14N32N-B2 Optical Panel Mount Encoder
C14N32N-B2 Optical Panel Mount Encoder
Optical Panel Mount Encoder Alternate View

C14N32N-B2

14 mm, 5 Vdc, 32 PPR, 130 mm Cable w/Connector Termination, Optical Panel Mount Encoder

Datasheet

Specifications

Type Description
Select
Base Size (mm) 14 x 16
Resolution (PPR) 32
Input Voltage (Vdc) 4.75 ~ 5.25
Shaft Length (mm) 17.5
Shaft (Bore) Ø (mm) 6
Detent No
Orientation Vertical
Termination Cable
Push Switch No
IP Rating No IP Rating
Series C14

Technical Docs

Datasheet
