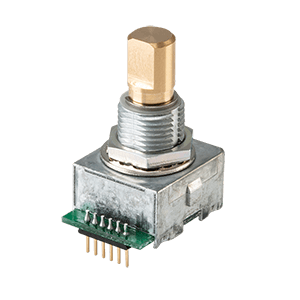

C14D32P-E3 Optical Panel Mount Encoder
C14D32P-E3 Optical Panel Mount Encoder
C14D32P-E3 Optical Panel Mount Encoder Alternate View

C14D32P-E3

14 mm, 5 Vdc, 32 PPR, PCB Pins, Optical Panel Mount Encoder

Datasheet

Specifications

Type Description
Select
Resolution (PPR) 32
Input Voltage (Vdc) 4.75 ~ 5.25
Shaft Length (mm) 17.5
Shaft (Bore) Ø (mm) 6.35
Detent Yes
Orientation Horizontal
Termination PCB Pins
Push Switch Yes
Series C14

Technical Docs

Datasheet
