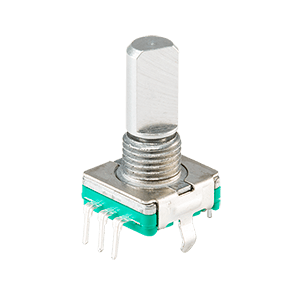

Specifications
| Type | Description | |
|---|---|---|
| Encoder Type | Incremental |
|
| Package Type | Panel Mount |
|
| Base Size (mm) | 11.7 x 12 |
|
| Resolution (PPR) | 20 |
|
| Output Type | Single Ended Quadrature |
|
| Input Voltage (Vdc) | 5 |
|
| Shaft Length (mm) | 16 |
|
| Detent | Yes |
|
| Operating Temp. (°C) | -40 ~ 85 |
|
| Orientation | Vertical |
|
| Termination | Through Hole |
|
| Push Switch | Yes |
|
| Open Center | No |
|
| Series | RIC11 |
|
