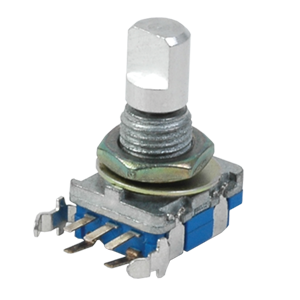

ACZ11BR4E-20KQD1-12C
11.7 mm, 12 PPR, Smooth, 5 mm mm Bushing, 20 mm Shaft Length, with Push Switch, Vertical, Through Hole, PCB Pins, Mechanical Panel Mount Encoder
Specifications
| Type | Description | |
|---|---|---|
| Encoder Type | Incremental |
|
| Package Type | Panel Mount |
|
| Base Size (mm) | 11.7 |
|
| Resolution (PPR) | 12 |
|
| Output Type | Single Ended Quadrature |
|
| Input Voltage (Vdc) | 0 ~ 5 |
|
| Shaft Length (mm) | 20 |
|
| Detent | Yes |
|
| Orientation | Vertical |
|
| Termination | PCB Pins |
|
| Push Switch | Yes |
|
| Series | ACZ11 |
|
| Operating Temp. (°C) | -10 ~ 65 |
|
| IP Rating | No IP Rating |
|
| Bushing Length (mm) | Smooth, 5 mm |
|
